What is the name of this mountain? Photo editors want to know. They like caption information. If you have a distinctive mountain in your photo, “Mountain in Colorado” won’t cut it with your friendly neighborhood photo editor. Here’s how to identify that mountain in Google Earth (and how to get GPS coordinates into Google Earth).
Posted Jan. 26, 2016. Updated Feb. 3, 2017.
Click on any of the Google Earth graphics below for a much larger version. All links in the article are listed together at the end of the article.
My brother-in-law and I had just crossed the Continental Divide at Marshall Pass (south of Mt. Ouray) and were headed toward Sargents, Colorado and points west. Marshall Pass is a beautiful drive in the fall. We encountered some beautiful fall colors on the way up and down but it was winter above 11,000 feet.
Not far from the top of the pass a snow capped peak came in to view so I pulled off at the first turnout. Despite the bright sun, the trees on the ridges were still coated with a very nice layer of frost. My DSLRs do not record GPS data so I used my iPhone to take a picture of the LCD on the back of my DSLR to give me the GPS location of the camera. This step makes it easy to find the photo location later on and some photo editors are starting to ask for GPS data. Most current smart phones record GPS data with the photos, as do many point and shoot cameras. Some recent DSLRs like the Canon 7D Mark II also record GPS information in the metadata.

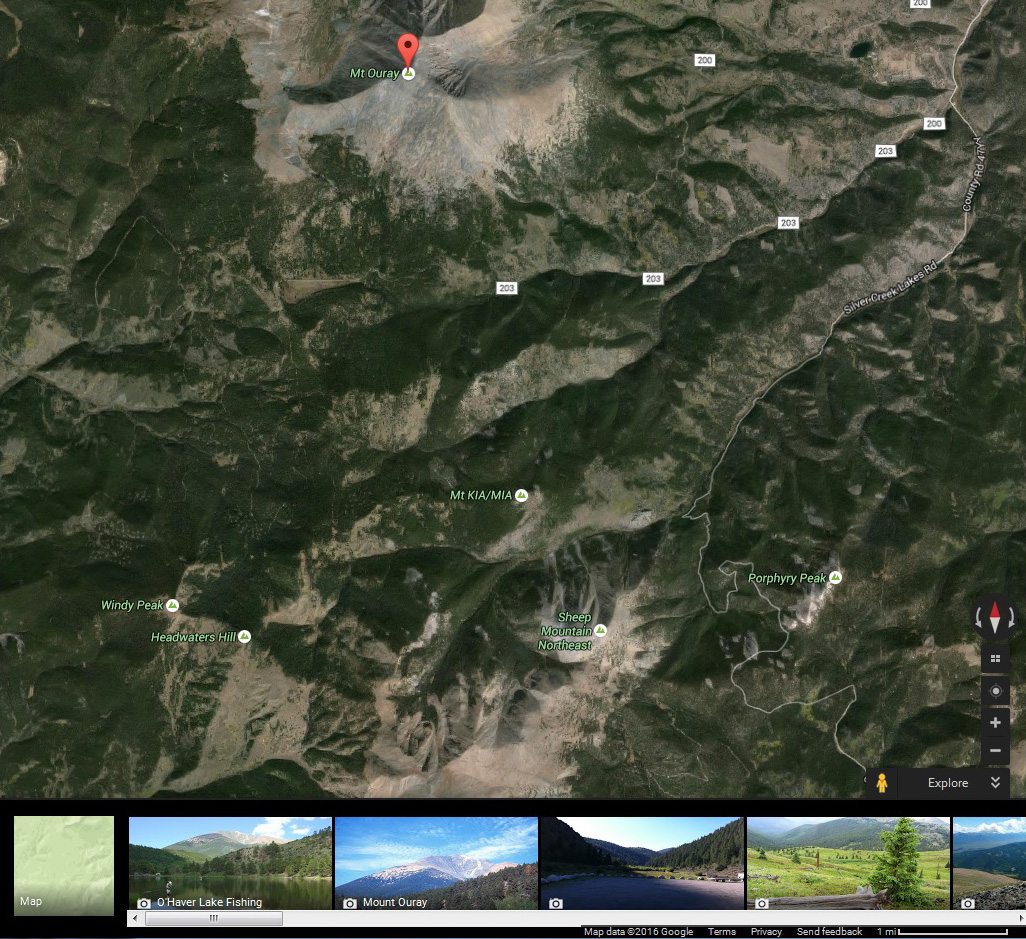

When I got back home I used Google Maps to look at the area south of Mt. Ouray. The information wasn’t detailed enough to know for sure which mountain was my mountain. I needed to see a 3-D side view in Google Earth.
I opened the iPhone photo for this location in Photoshop and checked the GPS information (File > File Info > GPS Data). Note the photo direction in the metadata: 101.78°.

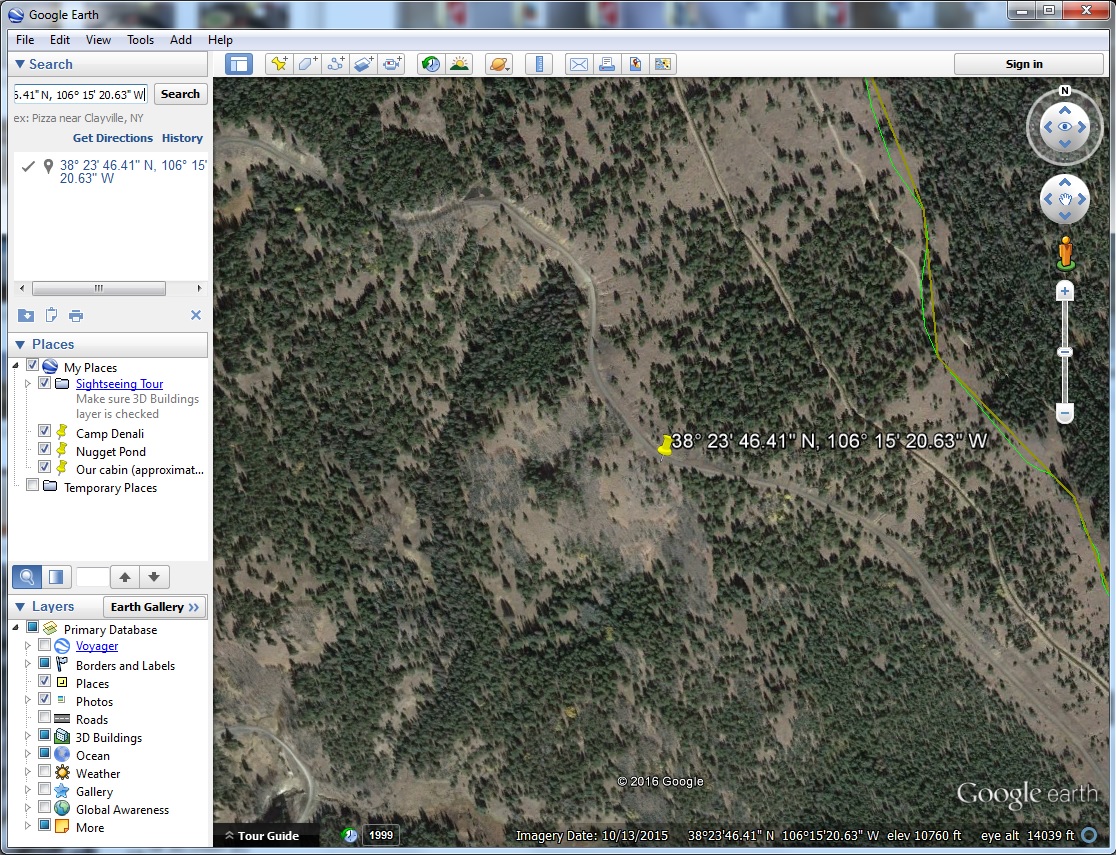

Next I opened Google Earth and dropped the GPS data (38° 23′ 46.41″ N, 106° 15′ 20.63″ W) into the search box. (I did this again today so I could grab screen captures for this article.) Google Earth took me right to the location where I took the photo which is marked by the yellow pin.
The GPS data needs to be entered into Google Earth with all of the correct notations, including the degree symbol (°). To get the degree symbol with a PC use ALT+0176. On a Mac use Option+Shift+8.

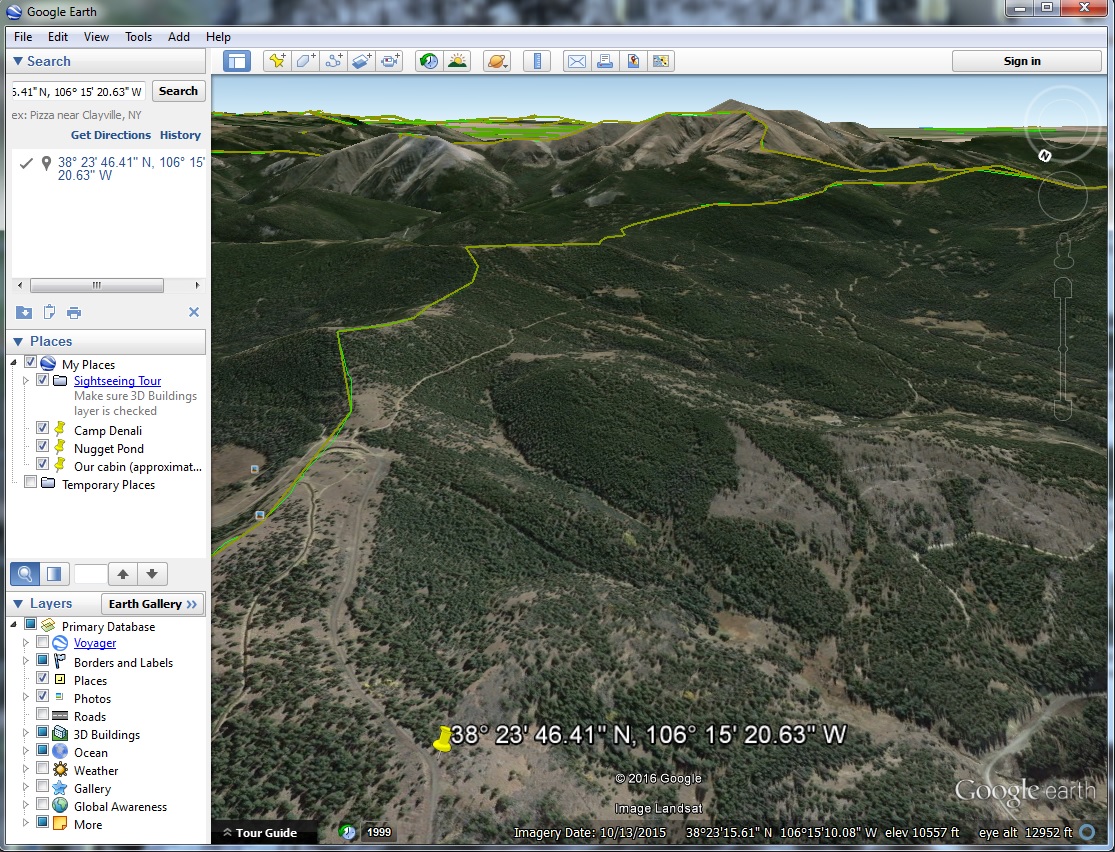

I grabbed the “N” for north in the top right corner of Google Earth and pulled it around the direction circle so Southeast was at the top of the photo. Inside the direction circle I clicked the upper arrow to change the angle of view so I was looking out instead of straight down. By using the other arrows I tweaked my point of view so I could see both the photo location and the mountain in my photo.
Using the arrows below the direction circle I flew over the landscape to get a closer look at the mountain. I also checked all of the other mountains in the area just to be sure I had the right one. If you are new to Google Earth, it takes a little practice to get used to how everything works.

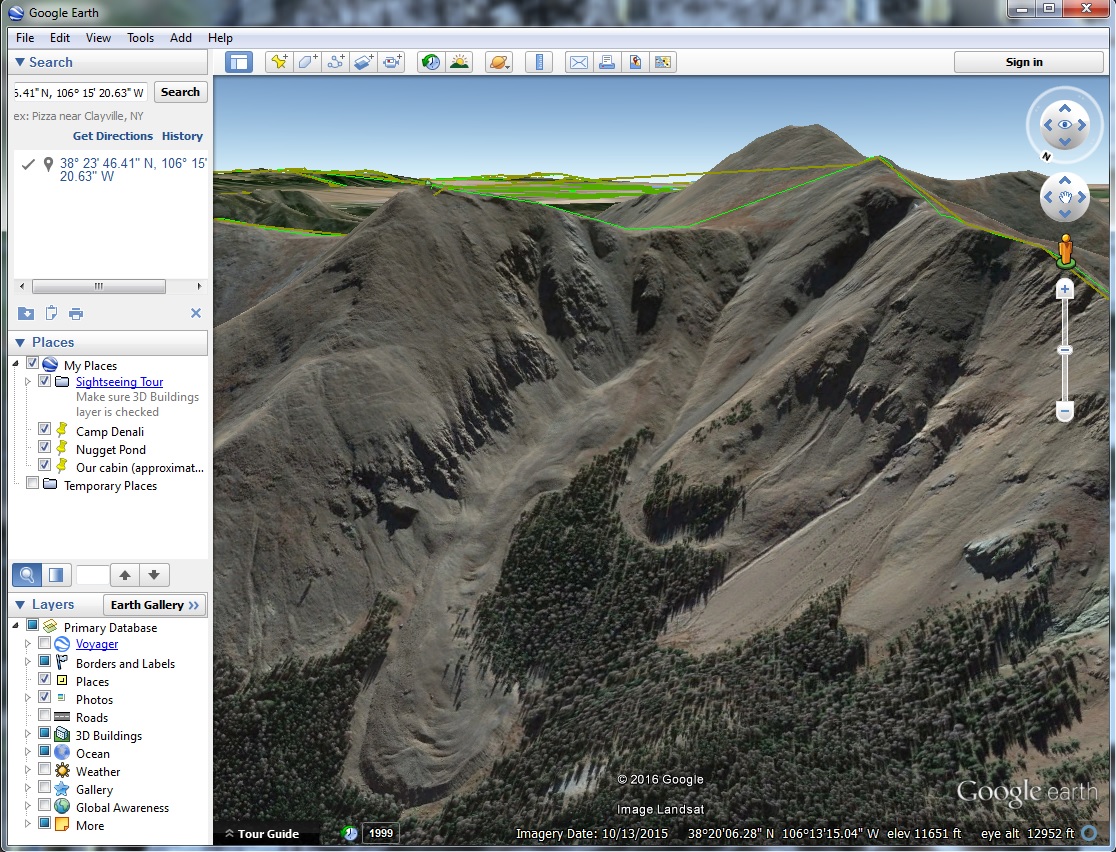

Once I was sure I had the right mountain, I flew up on top of the mountain to check the name. Major mountains in Google Earth have a small green mountain symbol on the top. Put your cursor over the green symbol and the name of the mountain pops up (the cursor doesn’t show in this screen capture). Antora Peak is the name of the mountain in my photo. Sheep Mountain is the mountain to the left. These two peaks are at the southern end of the Sawatch Range.
Antora Peak and Sheep Mountain (labeled) with a wider focal length (70 mm instead of 210mm). The photo location is the same. I changed cameras and lenses but not the tripod location. I like the framing provided by the trees in this image, but I prefer the top image for a more dramatic look at the peak and the frost covered trees. I included this image to give context to the next graphic with comments.

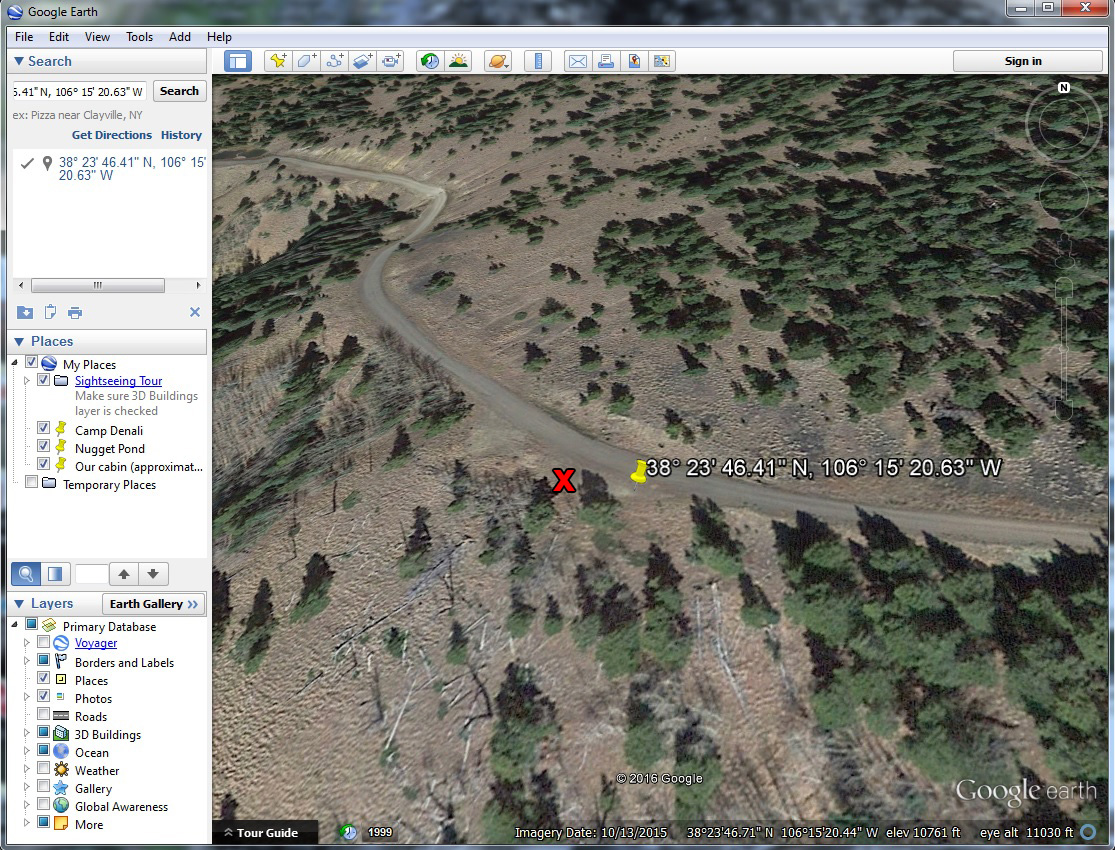

GPS location data can easily be off by 20-30 feet. This graphic shows the actual location of the photo (marked with a red x) as opposed to the information in the GPS data (yellow pin). I know this because there are two trees fairly close together and close to the road in my photo of Sheep Mountain and Antora Peak. Those two trees are clearly visible in this Google Earth image. I also did a test of the GPS accuracy for the day a little farther down the road. More about that in an article later this week. Stay tuned.
I often see deer or coyotes on the lower portions of Marshall Pass so I had two cameras with lenses ready to go at all times, one with 24-105mm zoom lens and one with a 100-400mm telephoto zoom lens. All photos (except for the iPhone photo) were taken with a tripod mounted camera.
The sunny f16 rule can lead you astray when there is bright sunlight on snow. To insure adequate texture in the snow and to keep it from burning out, I subtracted 2/3 of a stop from the Sunny f16 rule, giving me a shutter speed of 1/320 second (f11, ISO 100) instead of 1/200. I also bracketed the exposures to insure an optimum amount of RAW image data. More at the links below.
Both images: f/11, 1/320 sec., ISO 100.
Top image: Canon 7D. Canon EF 100-400mm lens at 210mm.
Lower image: Canon 5D Mark III. Canon EF 24-105mm lens at 70mm.
